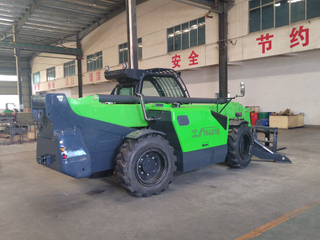

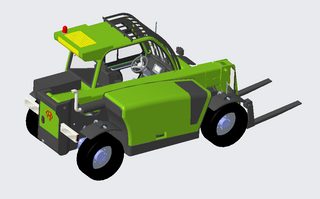

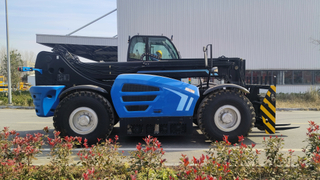

The wheeled forklift HZTH4007 is the 4t forklift that can lift, transport, and stack goods. The system mainly consists of the dedicated 4x4 chassis, boom system, leveling system, power transmission system, electrical control system, and hydraulic system.
The dedicated chassis can achieve front wheel steering (default mode), four-wheel steering, and crab driving. Closed static pressure drive is adopted during driving, mainly composed of driving wheels, non independent steering system, frame, and electronic control system; the power source of the hydraulic system is the engine, and load sensitive hydraulic systems such as the main boom luffing cylinder, telescopic cylinder, and active leveling cylinder of the boom head are used for on-car operation.
Product performance and technical parameters
S/N
Name of performance project
Performance or parameters
Remarks
1.
Outline dimension
Length (mm)
5150
Remove the pallet fork
Width (mm)
2250
Height (mm)
2300
2.
Dead weight (kg)
7600
3.
Hydraulic system pressure (MPa)
26
4.
Hydraulic system flow (l/min)
145
5.
Hydraulic fuel tank capacity (l)
150
6.
Engine
Model
QSB3.9-C110-30
National Standard III
7.
Power (kw@rev)
81/2200
8.
Torque (N@rev)
480/1600
9.
Maximum mobile speed (km/h)
25
10.
Gradeability (º)
30%
11.
Departure angle (º)
33
12.
Swing angle of rear axle frame (º)
5
13.
Tire specification
16.70-20 or 16.70-24
Work Area and Characteristics
It is necessary to determine whether the telescopic arm is lubricated before operation (the lubrication part is shown in Chapter 6, Lubrication Part);
It is necessary to strictly follow the load diagram operation;
It is necessary to improve the lifting capacity of this equipment and communicate with Hua Drill Intelligent.
1. Three steering modes, including: Front wheel steering (default mode), four-wheel steering, crab mode 2. Switching through the shift switch 3. Small turning radius, suitable for working in narrow areas, with four wheel steering and a turning radius of 4m
II. The vehicle has been adjusted to adapt to off-road driving
More+
The rear axle can adapt to ground swing, with a swing angle of ±5°;
III. The hydraulic control system, closed variable system + load sensitive system are energy-saving and environmentally friendly, and can be freely controlled
More+
1. Mobile independent closed variable system, energy-saving; 2. The open load sensing system is adopted for on-car.
IV. The multifaceted electrical control protection is safe and reliable
More+
1. Adding anti roll over limiters can alert and cut off on-car operations during excessive operations to prevent safety accidents; 2. Electronically controlled throttle, mobile with the ability to increase power with speed and exceed authority to handle off-road driving; 3. The on-car operation belt is equipped with the on-car stop button. If the operator accidentally releases their hand, the on-car operation will automatically stop
V. Driver's cab, spacious interior, luxurious atmosphere, wide view, multiple connected entertainment players, and multiple storage compartments
More+
1. Luxury atmosphere; 2. Panoramic large arc front windshield, with open view and no dead corners; 3. Equipped with Bluetooth, USB interface player, and luxury audio; 4. Equipped with multiple storage bins, mobile phones and files can be placed freely.
VI. Braking system, which achieves reliable and safe braking through the dual circuit holding system
More+
Energy storage braking is adopted with jog function
VII. Transmission system, equipped with various fractional reduction systems, with hydraulic free shifting and mechanical shifting
More+
1. Mobile static pressure transmission, can drive smoothly; 2. Hydraulic control for high and low speeds, allowing for easy shifting of gears; 3. Mechanical high and low speed, suitable for driving in different road conditions.
VIII. Driving ability
More+
Strong driving ability, excellent off-road and hill climbing ability
IX. Unique quick change method
More+
Unique quick change method, equipped with multi-level hydraulic control safety protection system, various assistive devices are reliably connected, and can be adapted to various assistive devices.
X. Ensure safety factors
More+
For structures, finite element design and analysis are adopted to ensure safety factors
Quick change type Attachment
Stacking and forking work
Bulldozing loading operations
Snatching and lifting operations
Man up working
Others Atts

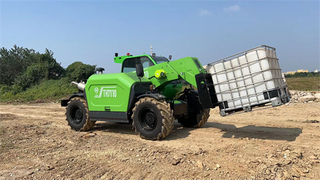

The forks use an active leveling mechanism to ensure smooth forklifting and stacking of goods.

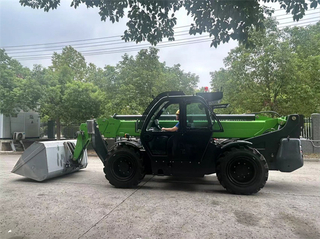

Through the quick-change mechanism, the cargo fork is replaced with a bucket. By operating the main arm and the active leveling mechanism, the bucket can be used to load goods.
Through the quick-change mechanism, the small arm can be installed to hoist the goods.
Through the quick-change mechanism, the work bucket is installed. The active leveling mechanism keeps the work bucket horizontal and can be used for manned high-altitude operations.
Through the quick change, it can be switched to a felling machine for forest farms, straw stacking and transportation equipment for agriculture, etc.

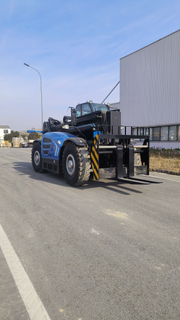

Stacking and forking work
The forks use an active leveling mechanism to ensure smooth forklifting and stacking of goods.

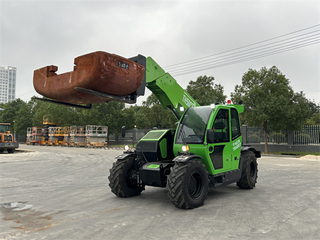

Bulldozing loading operations
Through the quick-change mechanism, the cargo fork is replaced with a bucket. By operating the main arm and the active leveling mechanism, the bucket can be used to load goods.
Snatching and lifting operations
Through the quick-change mechanism, the small arm can be installed to hoist the goods.
Man up working
Through the quick-change mechanism, the work bucket is installed. The active leveling mechanism keeps the work bucket horizontal and can be used for manned high-altitude operations.
Others Atts
Through the quick change, it can be switched to a felling machine for forest farms, straw stacking and transportation equipment for agriculture, etc.
