HZTH4018 , 4 ton telehandler, 4 ton 17 m telehandler, 4 ton 18 m telehandler,

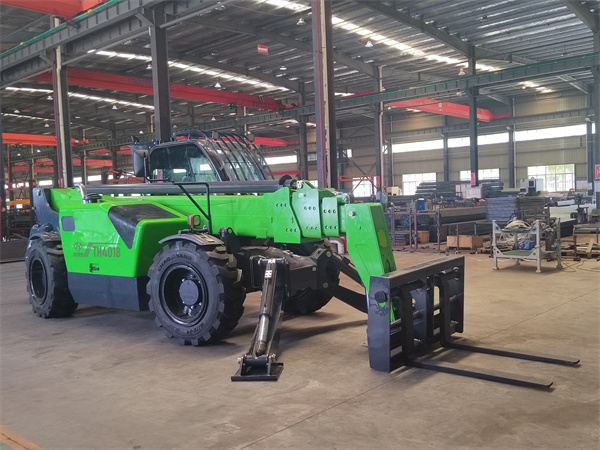

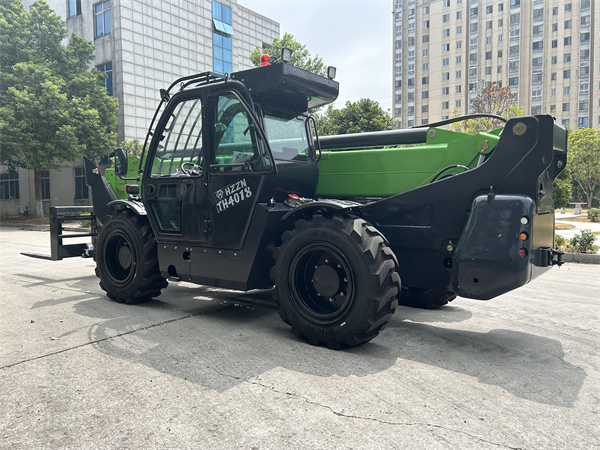

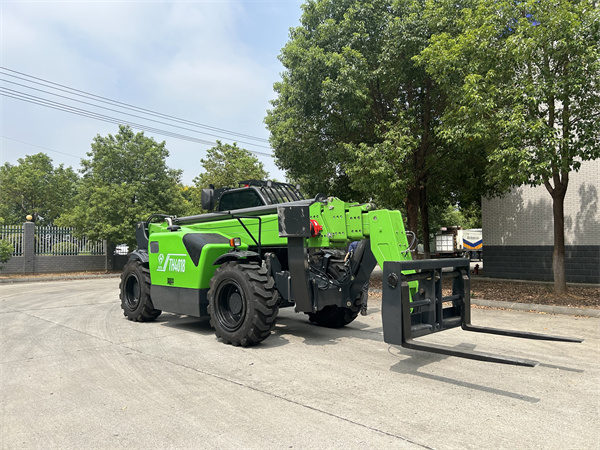

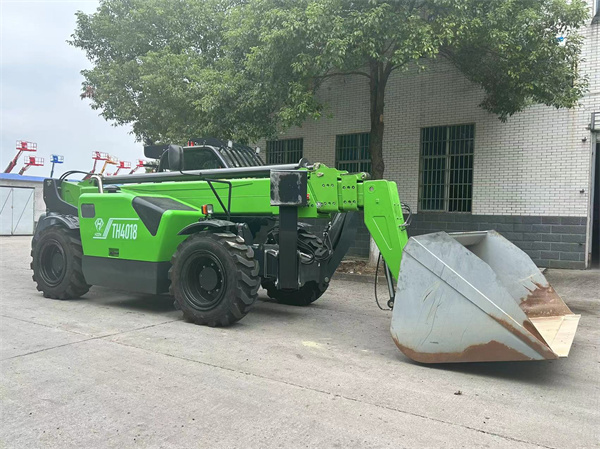

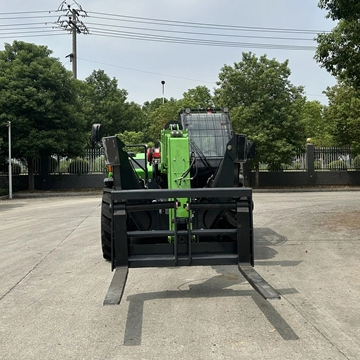

The telehandler HZTH4018 is the 4 ton telehandler that can lift, transport, and stack goods. The system mainly consists of the dedicated 4x4 chassis, boom system, leveling system, power transmission system, electrical control system, and hydraulic system.

Hua drill offers telehandlers to suit a variety of agricultural and farming applications and for added versatility and investment value, we offer a large attachments range too.

Quantity:
Availability:





Inquire Add to Basket

Model:
HZTH4018
Brand:
Hua Drill

Product Description

The side-mounted Cummins or weichai engine combines with Hua drill axles and transmission to ensure a reliable drivetrain performance from well-proven telescopic loader components. For added versatility, high utilisation and extra investment value, we offer a large attachments range. This telescopic handler also has instant steering selection between three modes for easy operation, single-lever servo controls, a tight turn radius and great manoeuvrability.

40181

序号 S/N	性能项目名称 Name of performance project			性能或参数 Performance or parameters	备注 Remarks

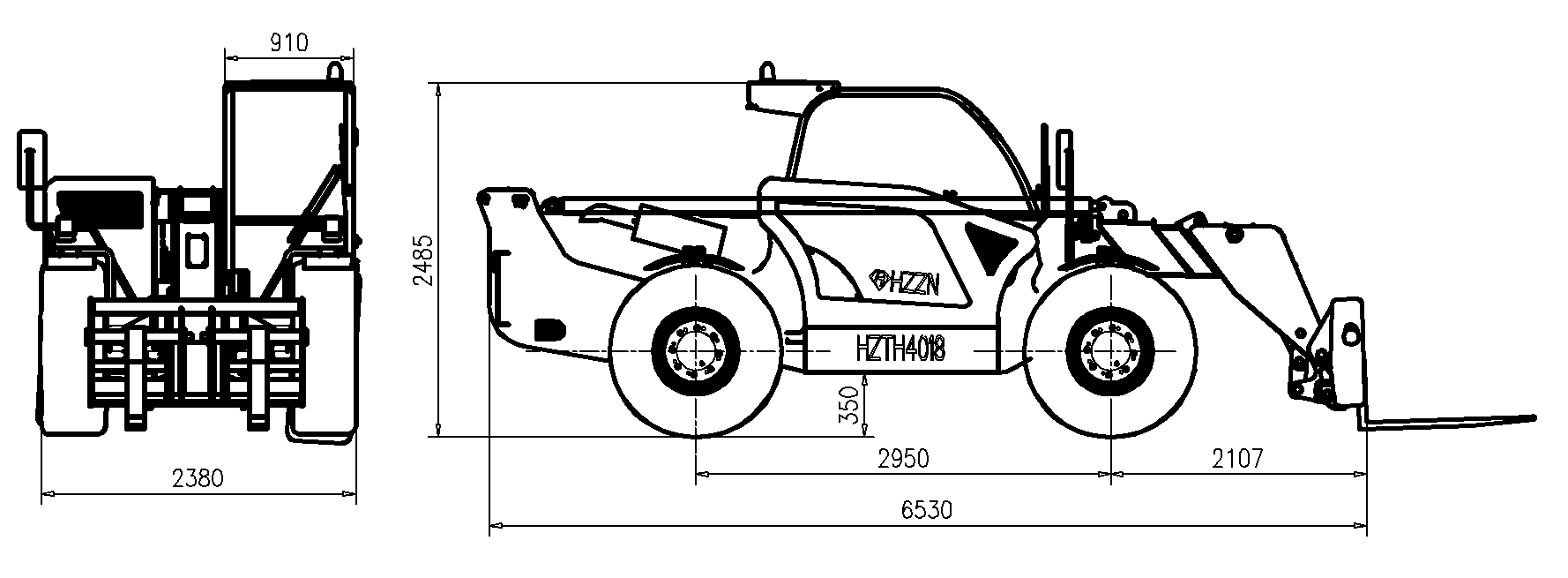

	外形尺寸 Outline dimension		长（mm） Length (mm)	6550	拆除货叉 Remove the pallet fork
			宽（mm） Width (mm)	2380
			高（mm） Height (mm)	2485
	自重（kg） Dead weight (kg)			12000
	液压系统压力（Mpa） Hydraulic system pressure (MPa)			30
	液压系统流量(l/min) Hydraulic system flow (l/min)			145
	液压油箱容积(l) Hydraulic fuel tank capacity (l)			150
	发动机 Engine	型号 Model		Cummins	National Standard 3
		功率(kw@rev) Power (kw@rev)		93/2200
		扭矩（N@rev） Torque (N@rev)		480/1600
	最大行走速度（km/h） Maximum mobile speed (km/h)			25
	爬坡度（°） Gradeability (º)			30%
	离去角（°） Departure angle (º)			33
	后桥车架摆动角度（°） Swing angle of rear axle frame (º)			5
	轮胎规格 Tire specification			16.70-24

40182

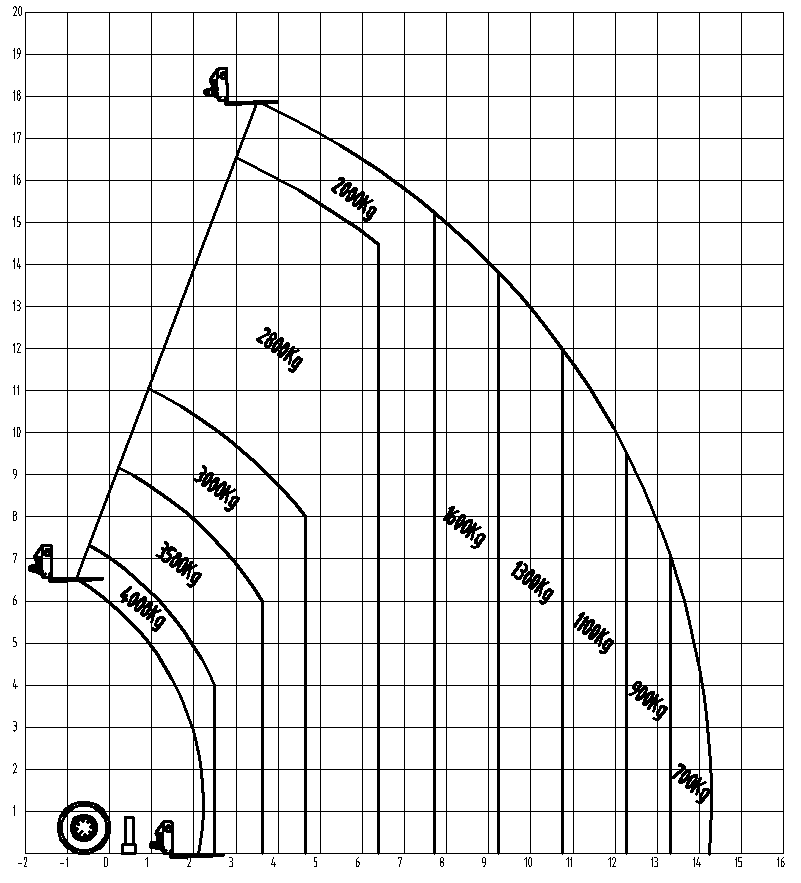

4018 Work area with outrigger

40184

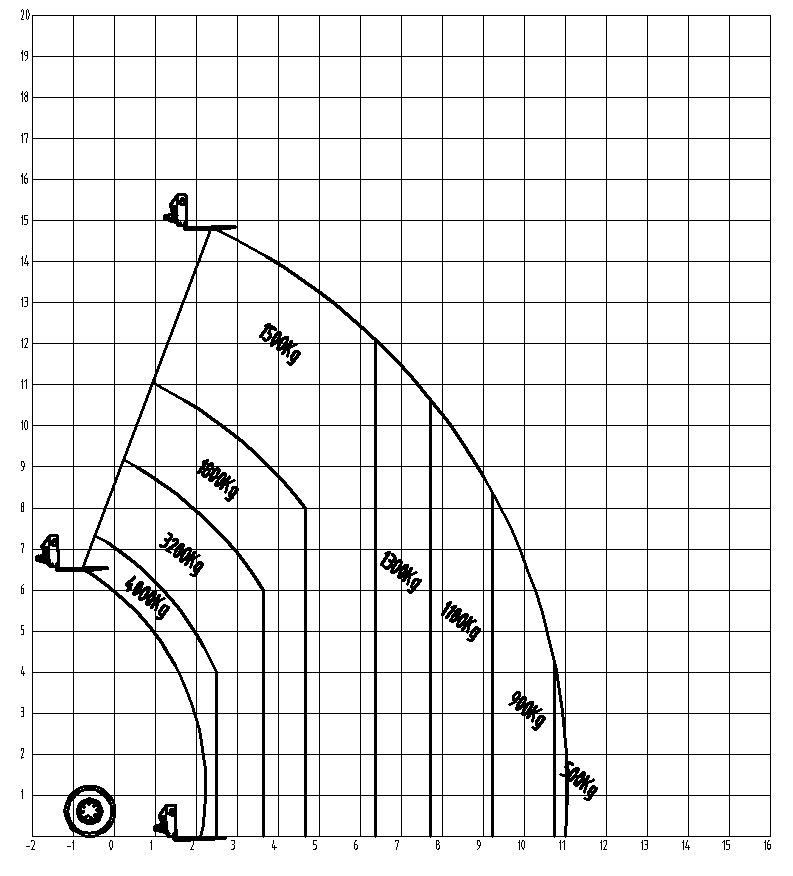

4018 Work area without outrigger
