| Quantity: | |
|---|---|
Best-in-class lift capacity at full height (12% over competition).
Small enough to fit through a 6ft (1.8m) high doorway.
Greater manoeuvrability allows use on the smallest worksites.
The most compact and towable telehandler available.
Ideal for yards, events, agriculture, construction and landscaping.
The new Hua Drill telehandler has the largest cab in its class, meaning there has been no compromise on cab comfort or safety.
Full-width cab is an extra 200mm wider than competitors.
Easy and uncompromised access and exit.
Great visibility to all four wheels gives operators complete confidence
性 能 项 目 名 称Name of performance project | 性能或参数SPE 备注Remark | |||
HZTH3007 | ||||

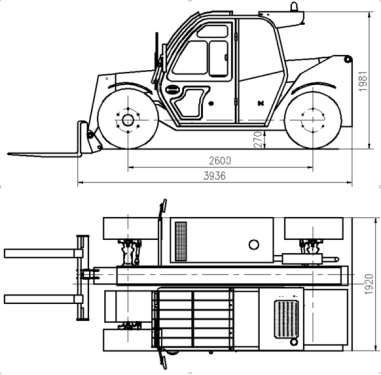

外形尺寸SIZE | 长（mm）L | 3936 | 拆除货叉removed fork | |
宽（mm）W | 1920 | |||
高（mm）H | 1981 | |||
自重（kg）Weight | 5120 | |||
液压系统压力（Mpa） Hydraulic system pressure | 28 | |||
液压系统流量(L/min) Hydraulic system flow | 145 | |||
液压油箱容积(L) Tank | 100 | |||
发动机engine | 型号Mold | 4TNV98CT-CVYU | Stage 3 | |
Power 功率(kw@rev) | 54/2100 | |||
Torque 扭矩（N@rev） | 308/1650 | |||
最大行走速度（km/h） Max. Speed | 40 | |||
爬坡度（°）Gradeability | 40% | |||
离去角（°）Departure angle | 33 | |||
后桥车架摆动角度（°） Swing angle of rear axle frame | 8 | |||
轮胎规格Tire | 12-16.5 12pr | |||
Exclusive comfort
An unprecedented design guarantees maximum functionality and comfort; grouping the information provided to the driver and the controls of the various systems and devices for optimal ergonomics. The reverse shuttle on the steering wheel is also present on the joystick.
Cab entry
To ensure simple and easy access to the cab, the door of Hua Drill telehandlers can be opened by up to 180°. In addition, the inside of the door is equipped with a large handrail to help the operator when getting inside and outside of the cab.
Air-conditioning
Developed according to automotive standards, cutting the warm-up and cool-down times in half compared to a conventional air conditioning system. The inlet vent is placed on the side of the cab, away from potential sources of dust and dirt, while inside there are 8 vents.
Transmission
In order to ensure a reduction in consumption and operating costs, Hua Drill telescopic handlers boast full electronic management of the transmission and engine, in order to minimise RPM and, consequently, fuel demand.

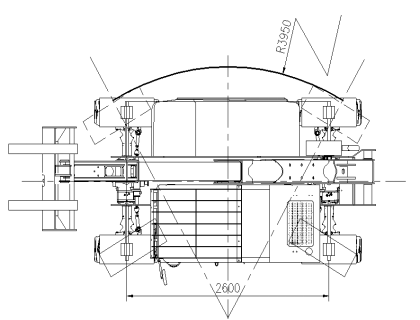

Steering Modes
The axles ensure the maximum steering angle to perform manoeuvres in tight spaces. Additionally, the operator can manage the steering of the machine with three different options according to the specific needs of the job.
Visibility
Hua Drill 's improved visibility increases range of movement and safety for operators.
Active safety
In order to remain fully compliant with regulations in frontal tipping prevention, Hua Drill handlers are equipped with features developed specifically to keep the operator safe from frontal tipping, without sacrificing performance, particularly of boom speed and lifting capacity.
Aerial work platform
The Hua Drill telehandlers can be configured with aerial work platform. This solution, complying with EN280 standard, assures an increased level of active and passive safety during work at heights, and enhances machine versatility.
Certified cab
All Hua Drill telehandlers have a metal structure above the glass roof on the outside of the cab to comply fully with FOPS Level II standard, the most stringent certification level in protecting the operator from falling objects.
