| Quantity: | |
|---|---|
HZTH4014
Hua Drill

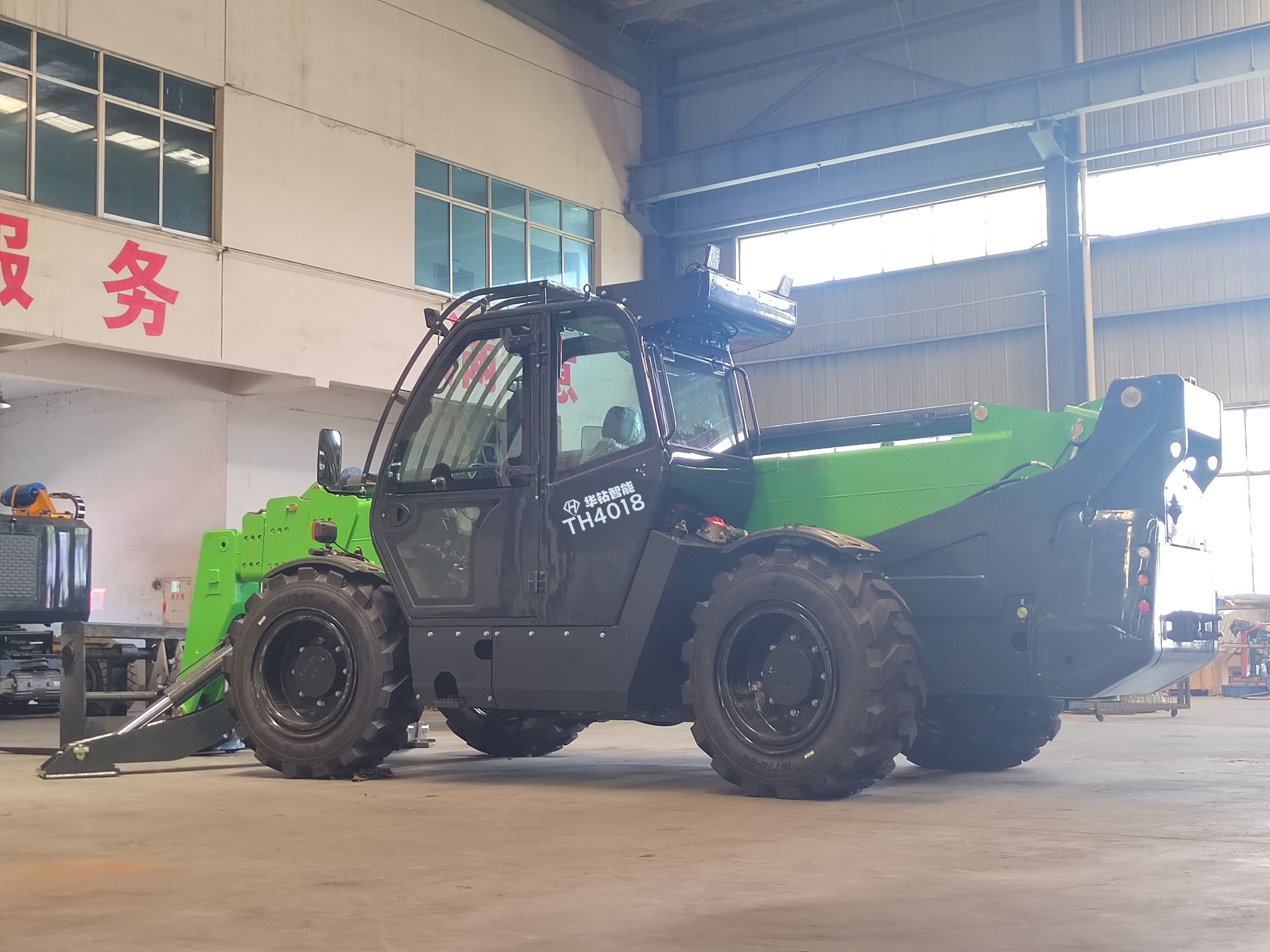

The dedicated chassis can achieve front wheel steering (default mode), four-wheel steering, and crab driving. Closed static pressure drive is adopted during driving, mainly composed of driving wheels, non independent steering system, frame, and electronic control system; the power source of the hydraulic system is the engine, and load sensitive hydraulic systems such as the main boom luffing cylinder, telescopic cylinder, and active leveling cylinder of the boom head are used for on-car operation.
What is a telescopic handler?
A telescopic handler, or telehandler, is a hydraulic lifting machine used to carry and place heavy materials. Sometimes called boom lifts, they move loads with a crane-like tool called a boom
序号 | 性能项目名称 | 性能或参数 | 备 注 | |||

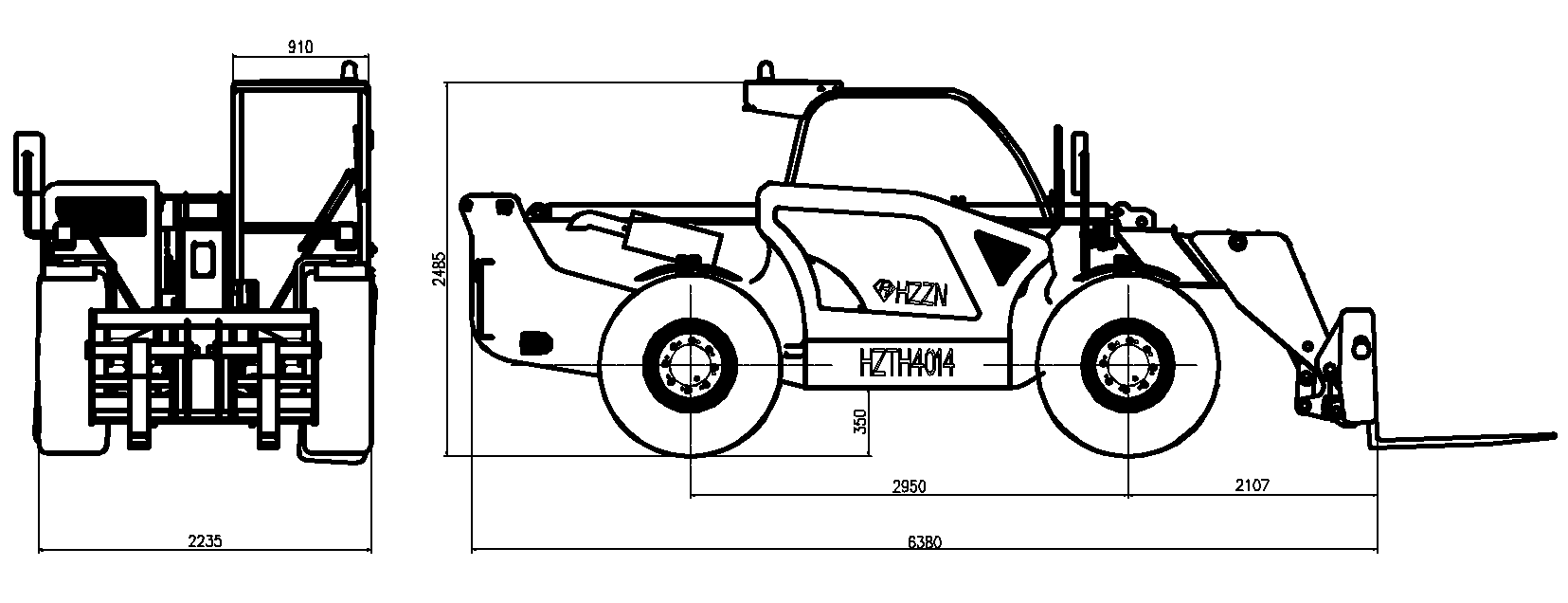

外形尺寸 | 长（mm） | 6380 | 拆除货叉 | |||
宽（mm） | 2380 | |||||
高（mm） | 2485 | |||||
自重（kg） | 10900 | |||||
液压系统压力（Mpa） | 30 | |||||
液压系统流量(l/min) | 145 | |||||
液压油箱容积(l) | 150 | |||||
发动机 | 型号 | Cummins | National Standard 3 | |||
功率(kw@rev) | 81/2200 | |||||
扭矩（N@rev） | 480/1600 | |||||
最大行走速度（km/h） | 25 | |||||
爬坡度（°） | 30% | |||||
离去角（°） | 33 | |||||
后桥车架摆动角度（°） | 5 | |||||
轮胎规格 | 16.70-24 | |||||

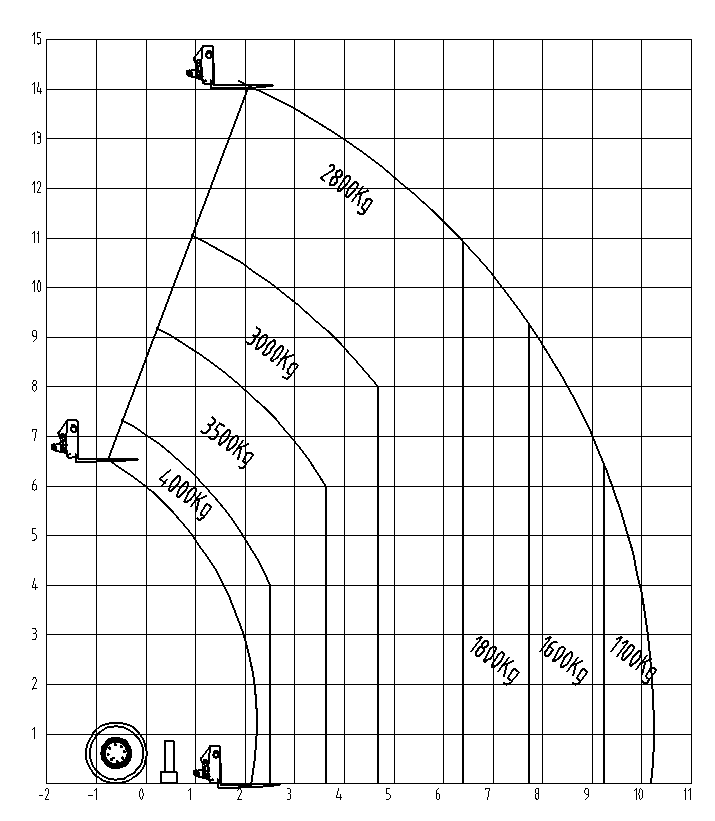

4014 Work area with outrigger

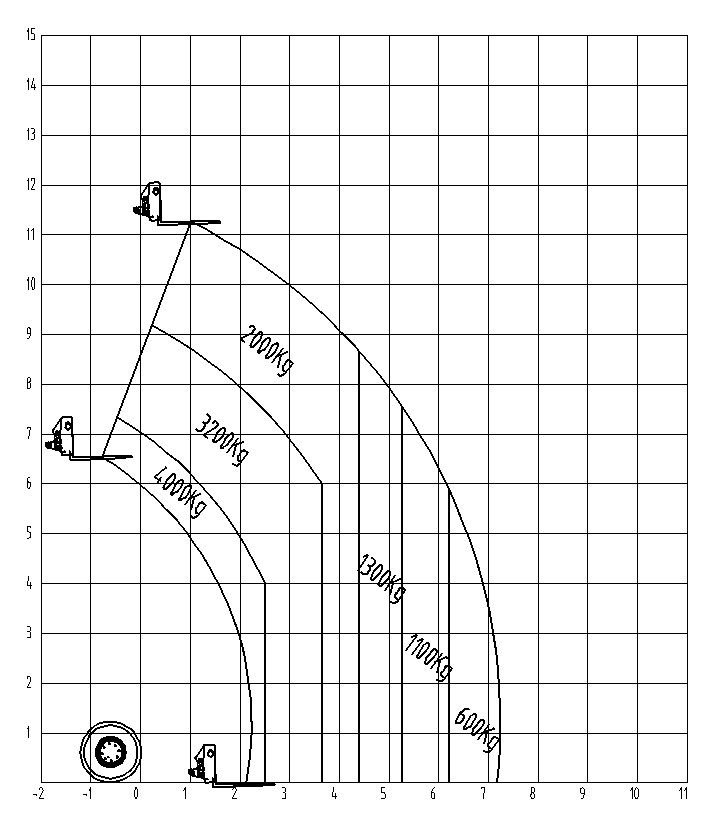

4014 Work area without outrigger
What is the difference between a telescopic handler and a forklift?
The difference is telehandlers reach higher and extend further out (it is important to note that these machines have a wide variety of capacities and lift heights). That's the advantage. Forklifts are used for picking and carrying material: Picking it up, setting it somewhere else
