HZTH-18010
hua drill
Lift capacity :18 ton
Lift height: 9.6 m
ENGINE: CUMMINS QSB4.5
Drive & Steering mode : 4 wheel drive, 4 wheel steering.front wheel steering,crab steering.

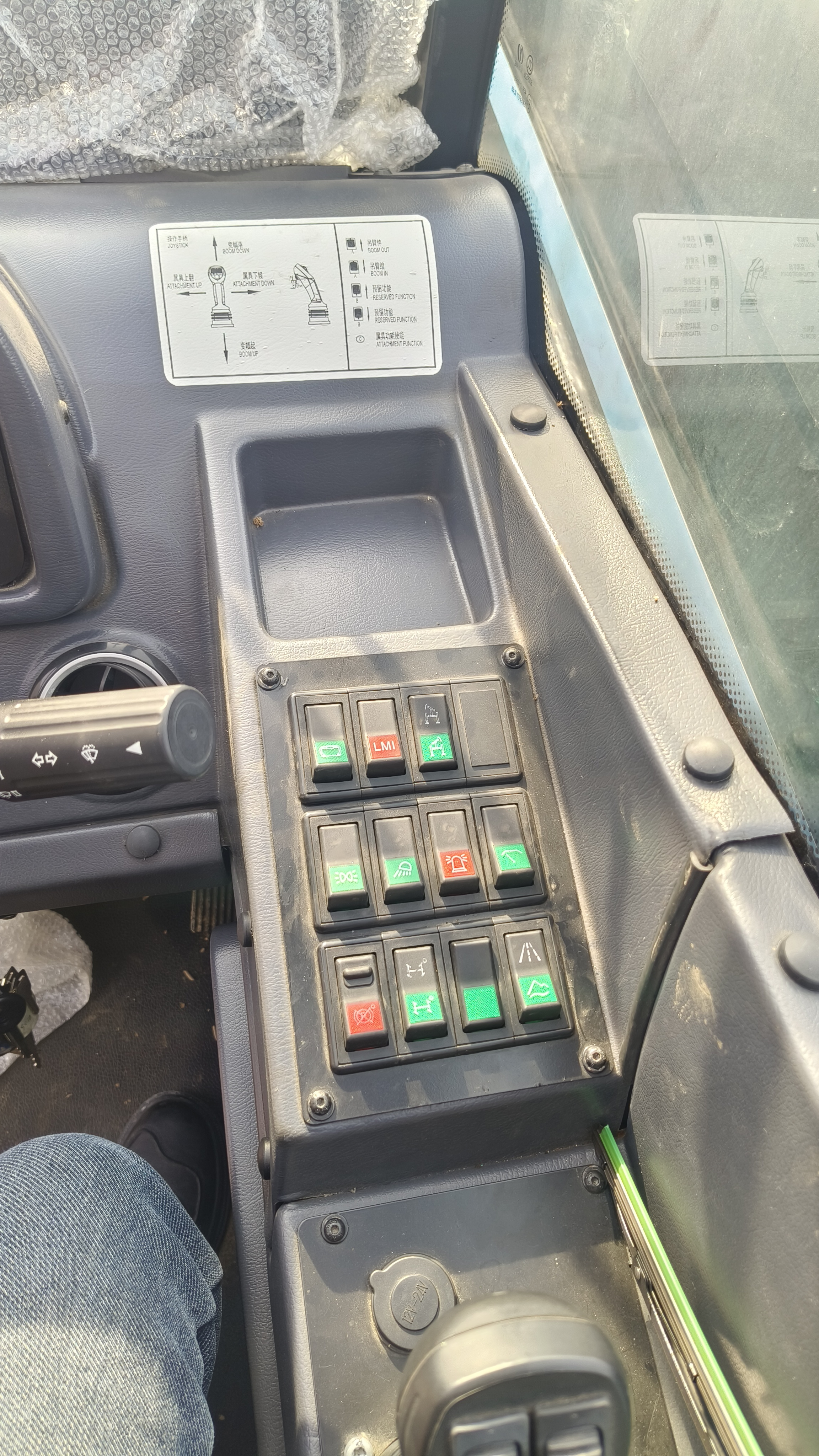

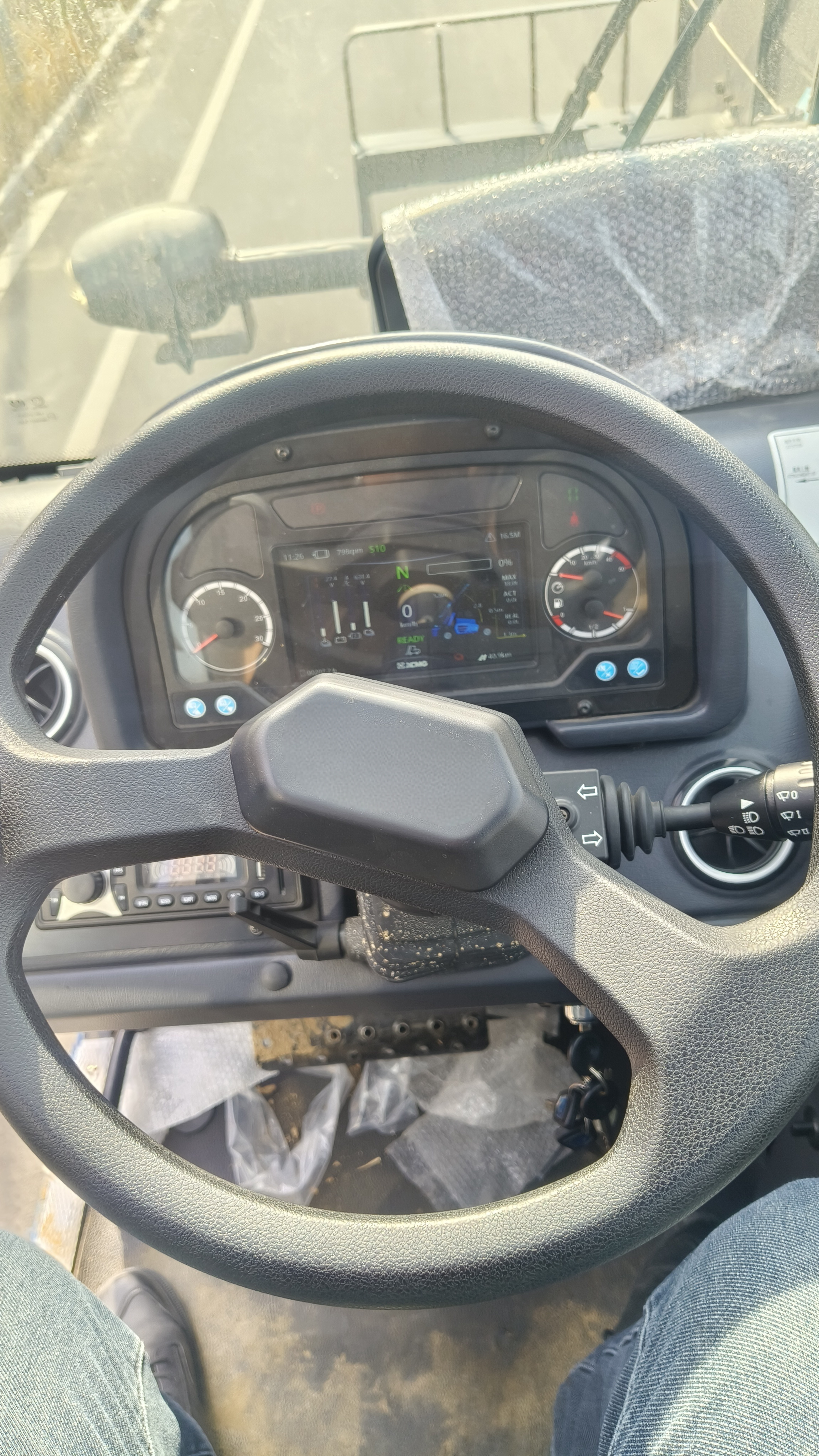

Cab with AC
Load limiter
1200 mm self level fork
Tool box
1 year 2000 hours spare parts
Transmission: America Dana

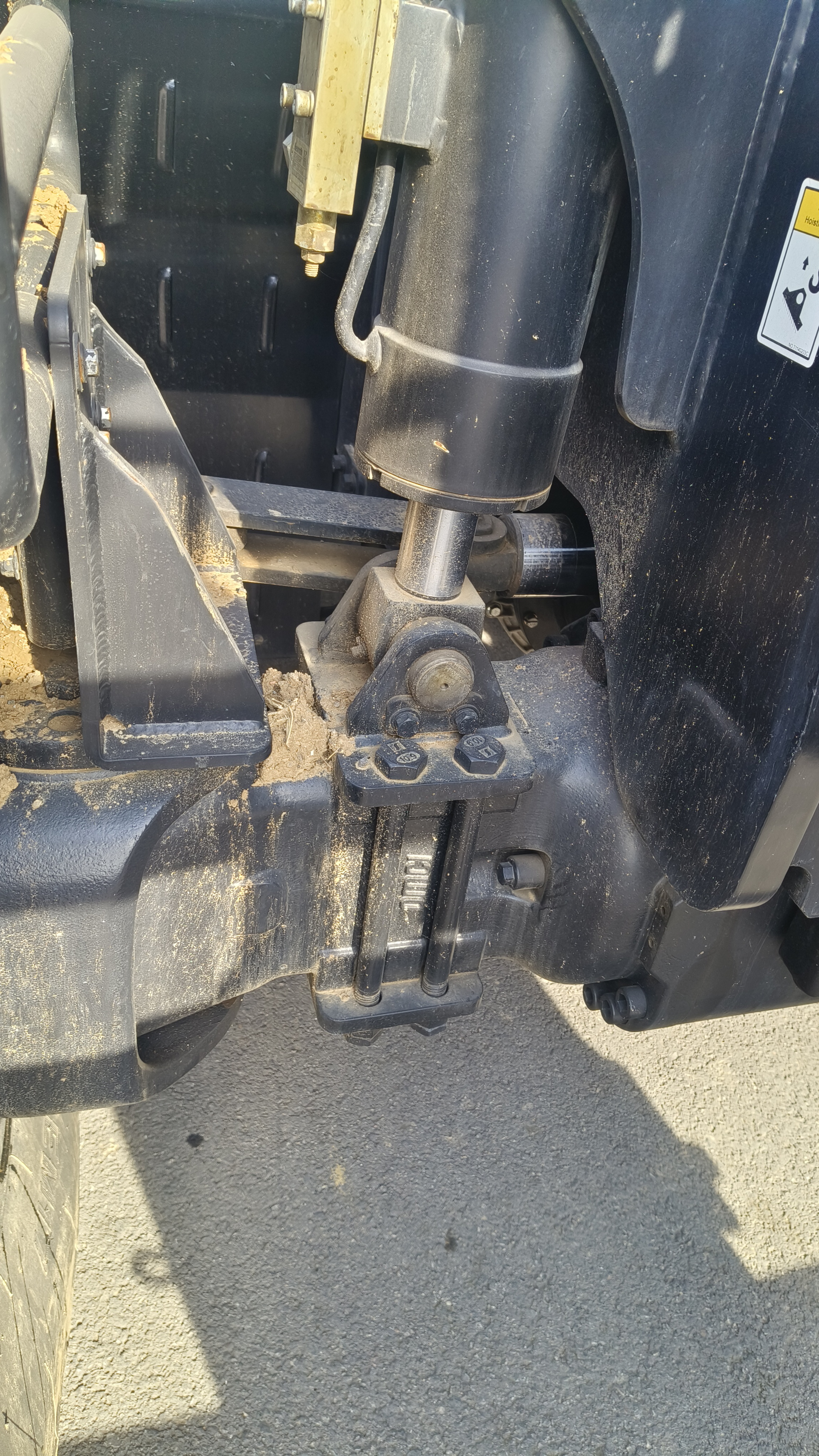

Axle: Italy OMCI
Pump: Germany Rexroth
Main value: Germany Rexroth
Hydraulic motor: Germany Rexroth
Steering gear: Eaton
Fork: Cascade

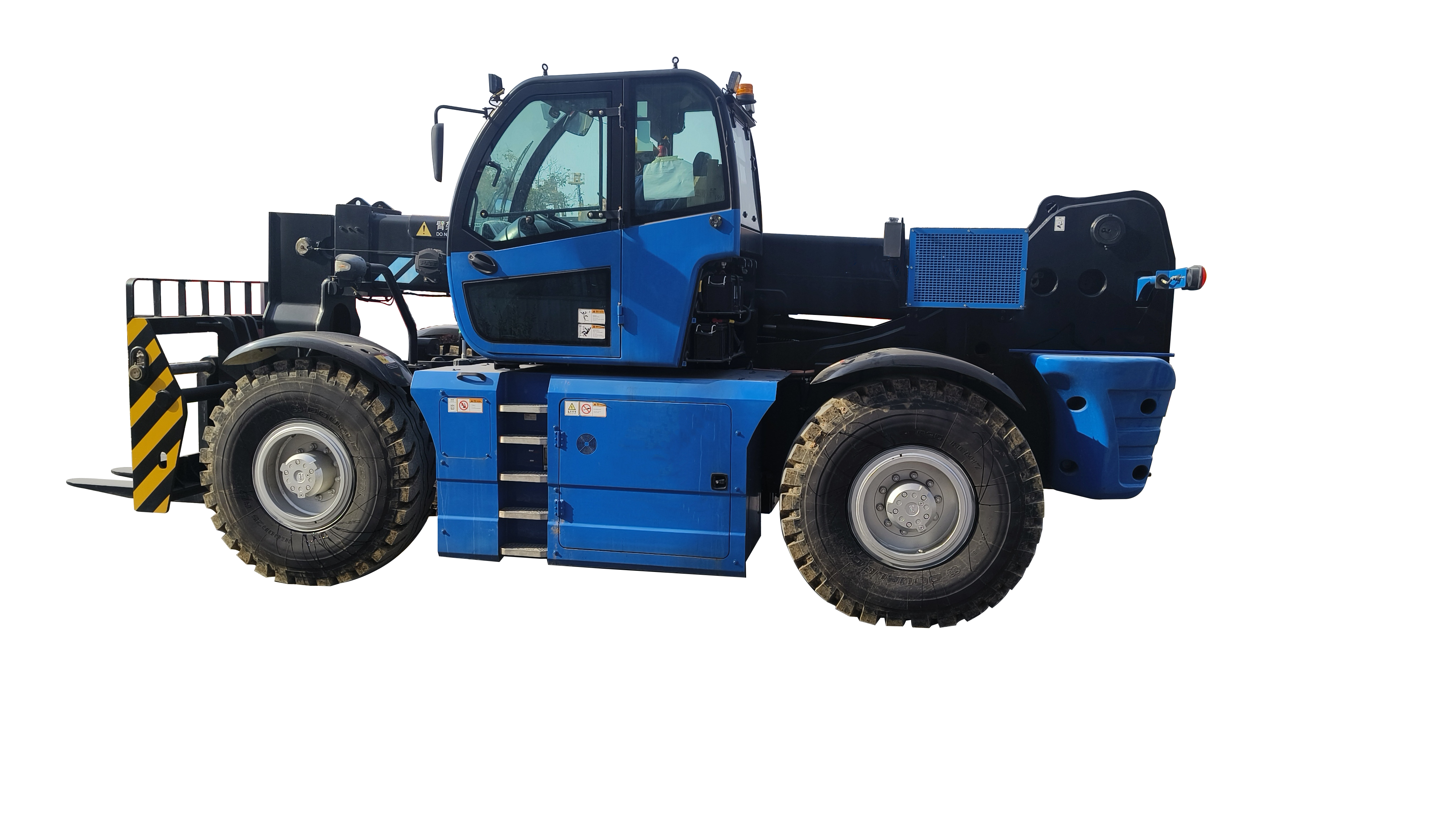

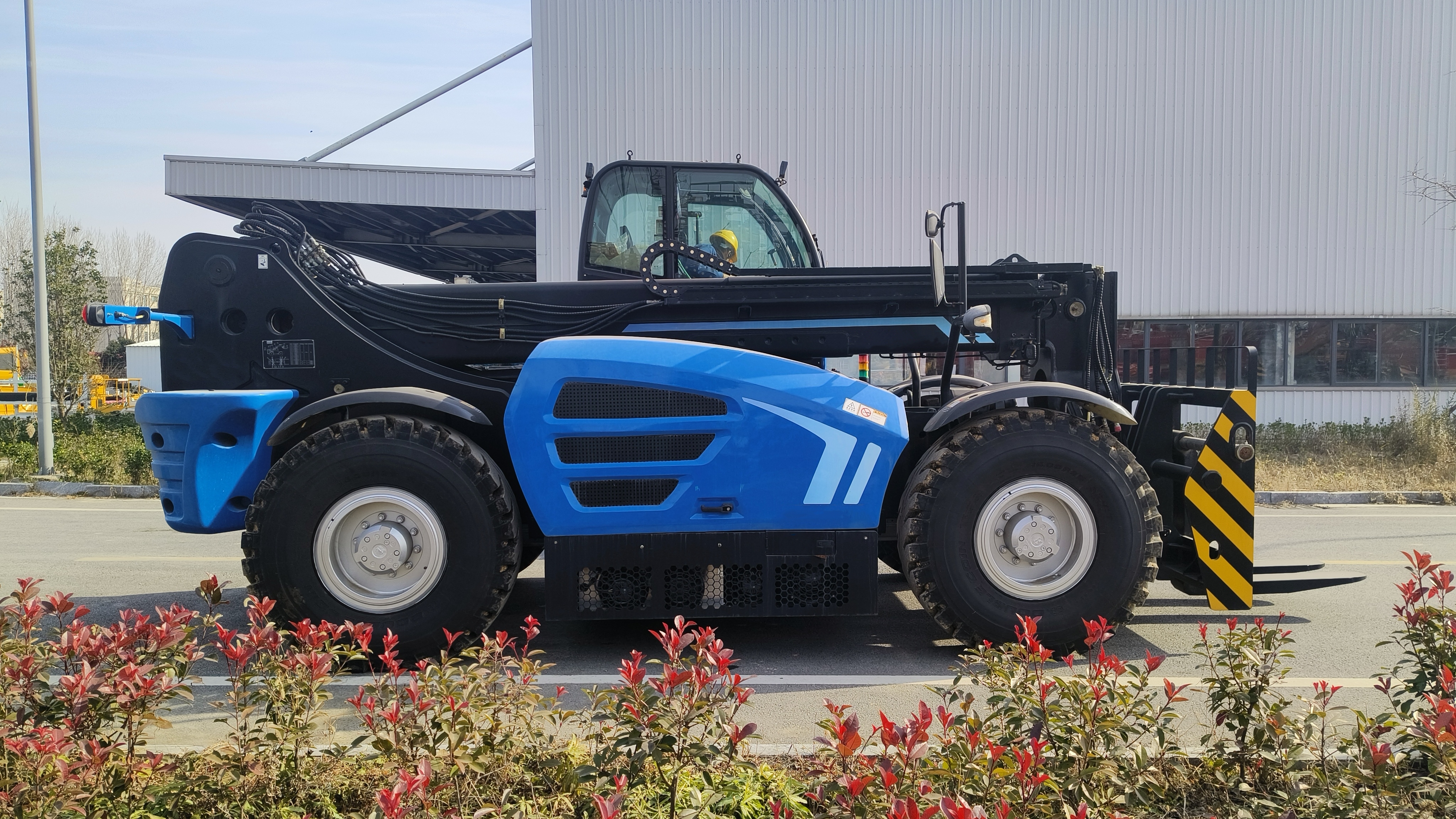

heavy duty 18 ton telehandler
heavy duty 16 ton telehandler
品牌Manufacturer | HUADIRLL | ||
型号Model designation | HZ-TH18010 | ||
举升性能 Lifting properties | 载荷能力Load capacity | 18,000 kg | |
载荷中心Load centre | 600mm | ||
举升高度Lifting height | 9,800 mm | ||
最大前伸Reach (to fork face) | 5,525 mm | ||
基本尺寸Dimensions | 总长 Overall length | 6,500 mm | |
不带货叉长度 Length to fork face | 6,500 mm | ||
总宽Overall width | 2,500 mm | ||
最小高度Overall height (min) | 3,300 mm | ||
轴距Wheelbase | 3,750 mm | ||
最小离地间隙Ground clearance | 440 mm | ||
自重含货叉Service weight with standard fork | 24,500 kg | ||
转弯半径Turning radius | 外轮Outside edge of wheel | 4,800 mm | |
车身 | 4,800 mm | ||
叉尖（货叉合并） | 5,890 mm | ||
货叉尺寸Standard forks LxWxH | 1,200x250x100 mm | ||
发动机Engine | 厂家 Manufacturer | Dongfeng Cummins | |
型号Model | CUMMINS QSB4.5 | ||
排放Emission | 国III/EU Stage IIIA | ||
变速箱Transmission | 驱动方式 | 四轮驱动/4WD | |
类型Type | 静压传动 Hydrostatic | ||
换档方式Shifting | 动力换档Power shift | ||
档位数（前/后）No. Of gears (fwd/rev) | 2/2 | ||
驱动桥 Drive axle | 厂家 Manufacturer | Italy OMCI | |
行车制动 Service brake | 液压钳盘式 Hydr. caliper disc | ||
液压系统 | Hydraulic system | 270Liter 350bar | |
行驶速度Travel speed （带载/空载）(Full load/without load) | 26/28 km/h | ||
爬坡能力Gradeability | 持续爬坡 continue Gradeability （带载/空载）(Full load/without load) | 18%/30% | |
最大爬坡Max.Gradeability （带载/空载）(Full load/without load)25%/40% | |||
轮胎 Tyres | 前Front | 17.5R25 REM2转向/驱动轮 Steering/Driving | |
后Rear | 17.5R25 REM2转向/驱动轮 Steering/Driving | ||
