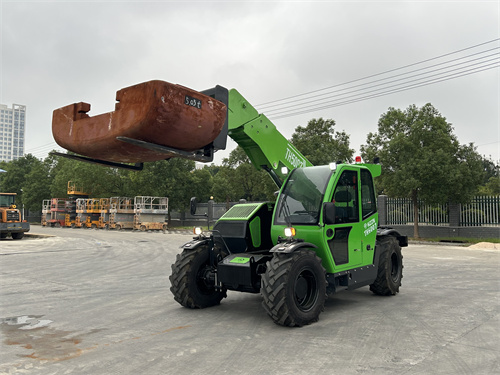

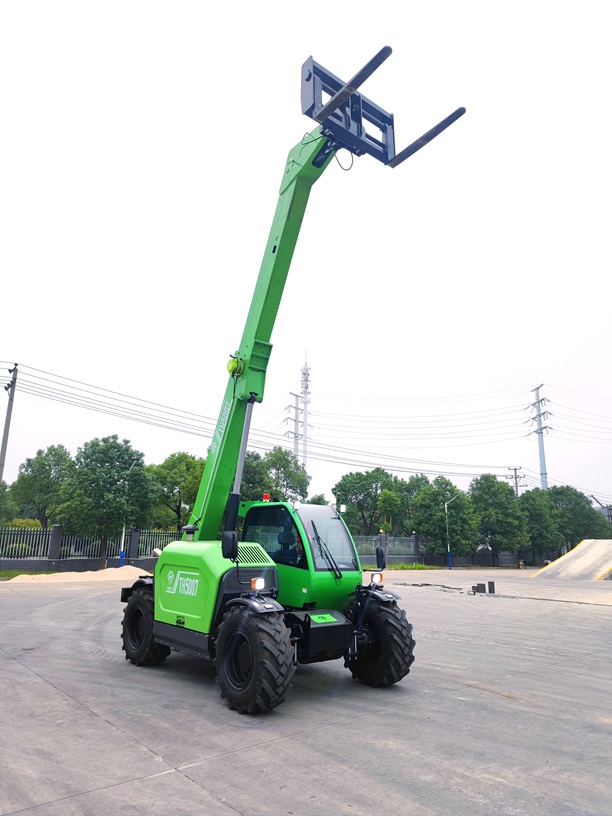

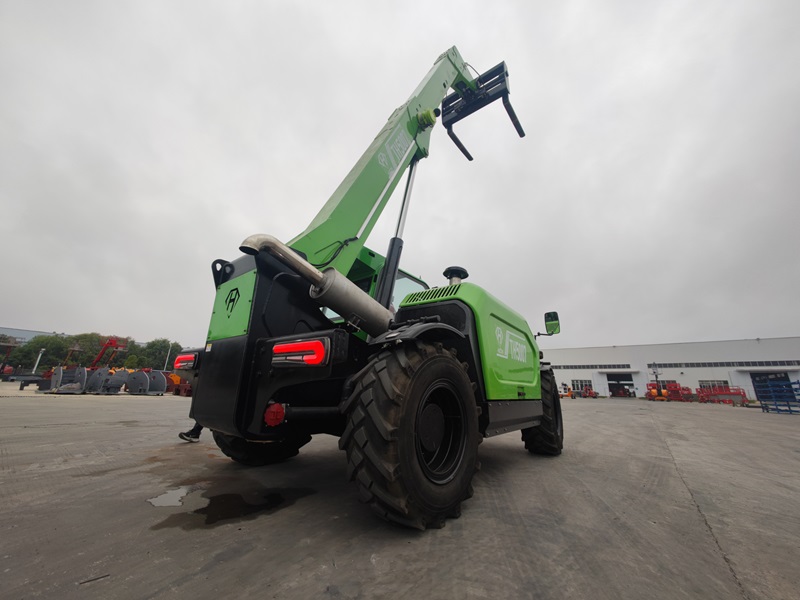

HZTH5007
Hua Drill
The vehicle has been adjusted to adapt to off-road driving
The rear axle can adapt to ground swing, with a swing angle of ±5°
The hydraulic control system, closed variable system + load sensitive system are energy-saving and environmentally friendly, and can be freely controlled
Mobile independent closed variable system, energy-saving;
The open load sensing system is adopted for on-car.
What is telehandler or telescopic handler
A telescopic handler, also called a lull, telehandler, teleporter, reach forklift, or zoom boom, is a machine widely used in agriculture and industry. It is somewhat like a forklift but has a boom (telescopic cylinder), making it more a crane than a forklift, with the increased versatility of a single telescopic boom that can extend forwards and upwards from the vehicle. The boom can be fitted with different attachments, such as a bucket, pallet forks, muck grab, or winch.
with off-road tire
序号 | 性能项目名称 | 性能或参数 | 备 注 | |||
1. | 外形尺寸 | 长（mm） | 5150 | 拆除货叉 | ||
宽（mm） | 2250 | |||||
高（mm） | 2300 | |||||
2. | 自重（kg） | 8000 | ||||
3. | 液压系统压力（Mpa） | 26 | ||||
4. | 液压系统流量(l/min) | 145 | ||||
5. | 液压油箱容积(l) | 150 | ||||
6. | 发动机 | 型号 | QSB3.9-C110-30 | 国三 | ||
7. | 功率(kw@rev) | 81/2200 | ||||
8. | 扭矩（N@rev） | 480/1600 | ||||
9. | 最大行走速度（km/h） | 25 | ||||
10. | 爬坡度（°） | 30% | ||||
11. | 离去角（°） | 33 | ||||
12. | 后桥车架摆动角度（°） | 5 | ||||
13. | 轮胎规格 | 16.70-20 or 16.70-24 | ||||
The vehicle has been adjusted to adapt to off-road driving
The rear axle can adapt to ground swing, with a swing angle of ±5°
The hydraulic control system, closed variable system + load sensitive system are energy-saving and environmentally friendly, and can be freely controlled
Mobile independent closed variable system, energy-saving;
The open load sensing system is adopted for on-car.
What is telehandler or telescopic handler
A telescopic handler, also called a lull, telehandler, teleporter, reach forklift, or zoom boom, is a machine widely used in agriculture and industry. It is somewhat like a forklift but has a boom (telescopic cylinder), making it more a crane than a forklift, with the increased versatility of a single telescopic boom that can extend forwards and upwards from the vehicle. The boom can be fitted with different attachments, such as a bucket, pallet forks, muck grab, or winch.
with off-road tire
序号 | 性能项目名称 | 性能或参数 | 备 注 | |||
1. | 外形尺寸 | 长（mm） | 5150 | 拆除货叉 | ||
宽（mm） | 2250 | |||||
高（mm） | 2300 | |||||
2. | 自重（kg） | 8000 | ||||
3. | 液压系统压力（Mpa） | 26 | ||||
4. | 液压系统流量(l/min) | 145 | ||||
5. | 液压油箱容积(l) | 150 | ||||
6. | 发动机 | 型号 | QSB3.9-C110-30 | 国三 | ||
7. | 功率(kw@rev) | 81/2200 | ||||
8. | 扭矩（N@rev） | 480/1600 | ||||
9. | 最大行走速度（km/h） | 25 | ||||
10. | 爬坡度（°） | 30% | ||||
11. | 离去角（°） | 33 | ||||
12. | 后桥车架摆动角度（°） | 5 | ||||
13. | 轮胎规格 | 16.70-20 or 16.70-24 | ||||
