HZTH7210
Hua Drill
序号 | 性能项目名称 | 性能或参数 | 备 注 | |||

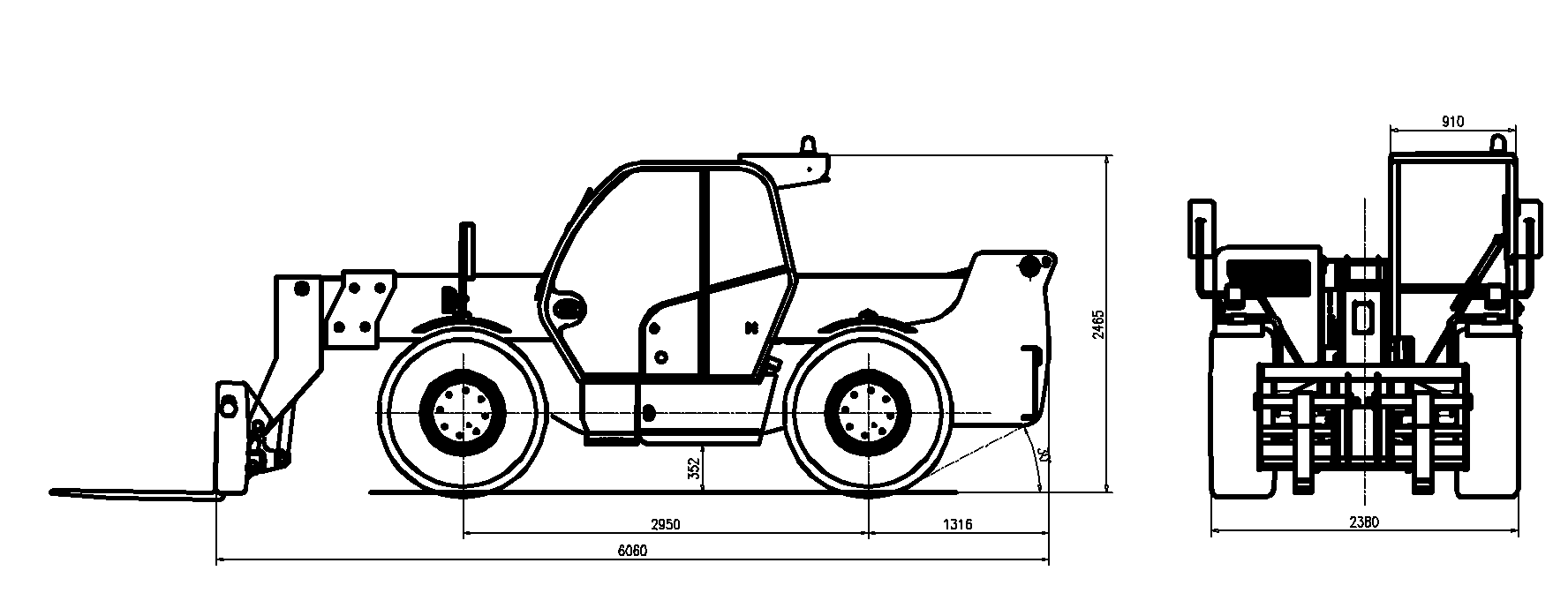

外形尺寸 | 长（mm） | 6060 | 拆除货叉 | |||
宽（mm） | 2380 | |||||
高（mm） | 2465 | |||||
自重（kg） | 13500 | |||||
液压系统压力（Mpa） | 26 | |||||
液压系统流量(l/min) | 145 | |||||
发动机 | 型号 | QSB4.5(97kw，130HP) | 国三 | |||
功率(kw@rev) | 97/2200 | |||||
扭矩（N@rev） | 600N.M/1500 | |||||
最大行走速度（km/h） | 25 | |||||
爬坡度（°） | 30% | |||||
离去角（°） | 28 | |||||
后桥车架摆动角度（°） | 8 | |||||
轮胎规格Tire specification | 18-24 | |||||
液压油箱Hydraulic oil tank | 160 L | |||||
柴油油箱Diesel oil tank | 150 L | |||||
液压泵Hydraulic pump type | Gear Pump for power steering and movements | |||||
臂举升速度Boom lifting Speed | 15.1 s | |||||
臂前伸速度Boom Extension Speed | 10.4 s | |||||
The side-mounted cummins engine combines with Hua Drill axles and transmission to ensure a reliable drivetrain performance from well-proven telescopic loader components. For added versatility, high utilisation and extra investment value, we offer a large attachments range. This telescopic handler also has instant steering selection between three modes for easy operation, single-lever servo controls, a tight turn radius and great manoeuvrability.
Agricultural telehandler
Fluid filters (engine oil, hydraulic oil and fuel) are centrally located for fast, easy servicing. The air filter is easily accessible too, and its double-element design simplifies cleaning; yet another reason why Hua drill Construction telehandlers have best-in-class SAE serviceability ratings.
