HZTH7017
Hua Drill

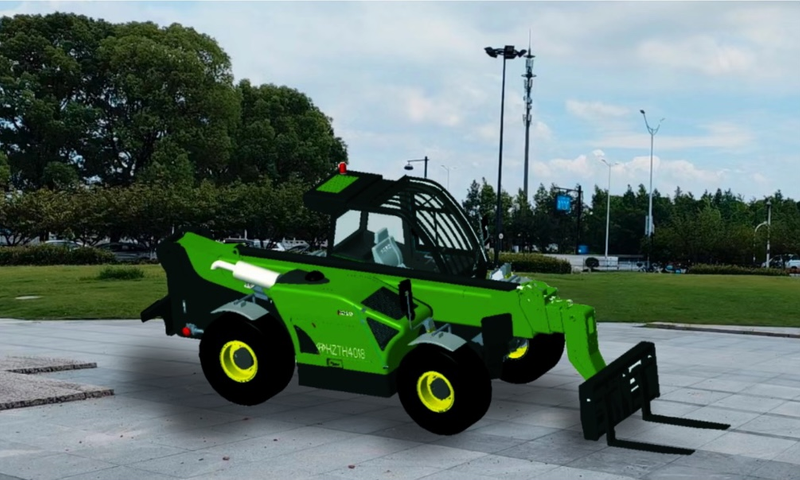

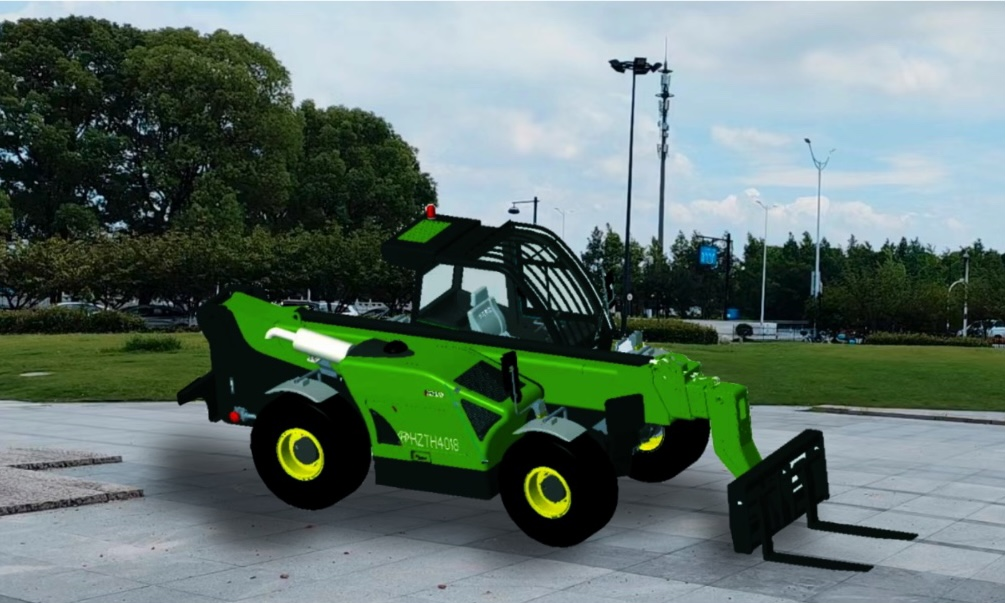

The telehandler HZTH7017 is the 7 ton telehandler that can lift, transport, and stack goods. The system mainly consists of the dedicated 4x4 chassis, boom system, leveling system, power transmission system, electrical control system, and hydraulic system.

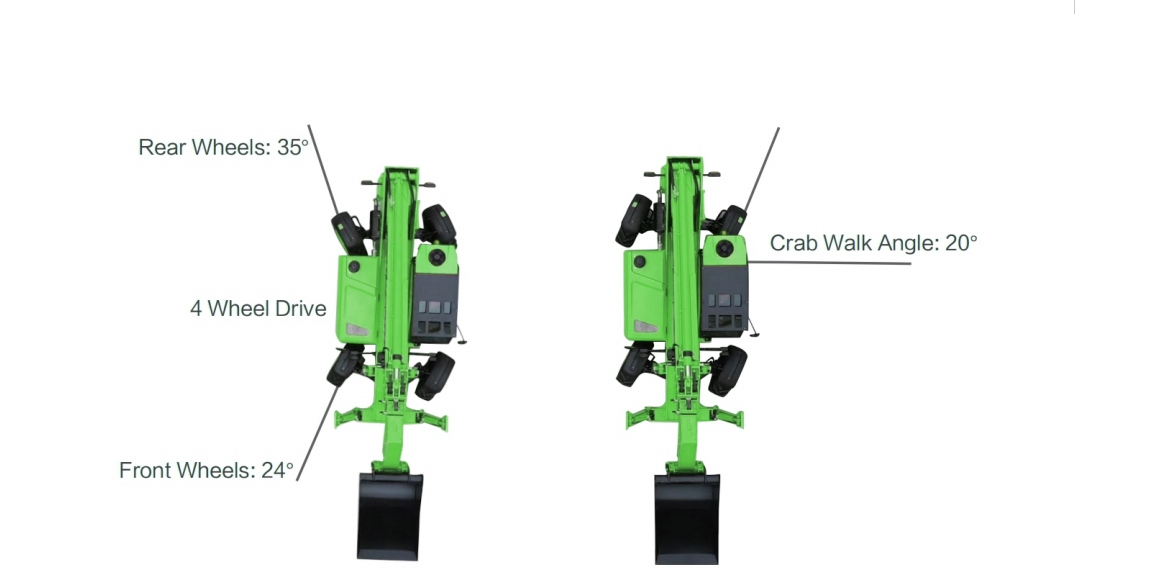

The dedicated chassis can achieve front wheel steering (default mode), four-wheel steering, and crab driving. Closed static pressure drive is adopted during driving, mainly composed of driving wheels, non independent steering system, frame, and electronic control system; the power source of the hydraulic system is the engine, and load sensitive hydraulic systems such as the main boom luffing cylinder, telescopic cylinder, and active leveling cylinder of the boom head are used for on-car operation.
1. Mobile independent closed variable system, energy-saving;
2. The open load sensing system is adopted for on-car.
3. Adding anti roll over limiters can alert and cut off on-car operations during excessive operations to prevent safety accidents;
4. Electronically controlled throttle, mobile with the ability to increase power with speed and exceed authority to handle off-road driving;
5. The on-car operation belt is equipped with the on-car stop button. If the operator accidentally releases their hand, the on-car operation will automatically stop
性能项目名称 | HZTH7017 | ||
外形尺寸 | 长（mm）Length (mm) | 6720 | |
宽（mm）Width (mm) | 2500 | ||
高（mm）Height (mm) | 2710 | ||
自重（kg）Dead weight (kg) | 17000 | ||
液压系统压力（Mpa）Hydraulic system pressure (MPa) | 28 | ||
液压系统流量(l/min) | 145 | ||
发动机Engine | 型号Model | QSB4.5-C160-30 | |
功率(kw@rev)Power (kw@rev) | 119/2200 | ||
扭矩（N@rev）Torque (N@rev) | 480/2200 | ||
最大行走速度（km/h）Maximum mobile speed (km/h) | 25 | ||
爬坡度（°）Gradeability (º) | 30% | ||
离去角（°）Departure angle (º) | 28 | ||
后桥车架摆动角度（°）Swing angle of rear axle frame (º) | 8 | ||
轮胎规格Tire specification | 14.00-24-28PR | ||
液压油箱Hydraulic oil tank | 220 L | ||
柴油油箱Diesel oil tank | 215 L | ||
液压泵Hydraulic pump type | Gear Pump for power steering and movements | ||
臂举升速度Boom lifting Speed | 15.1 s | ||
臂前伸速度Boom Extension Speed | 10.4 s | ||
