HZMEM1503
Hua Drill
It mainly solves the implementation of driving adaptability, meets the demands for drilling, pole erection and digging working conditions, as well as the transportation standard. Among which, drilling and pole erection are for the poles of 15m and below, drilling diameter is 500-800mm, and excavation function is to achieve 2-3m underground cable laying ditch.

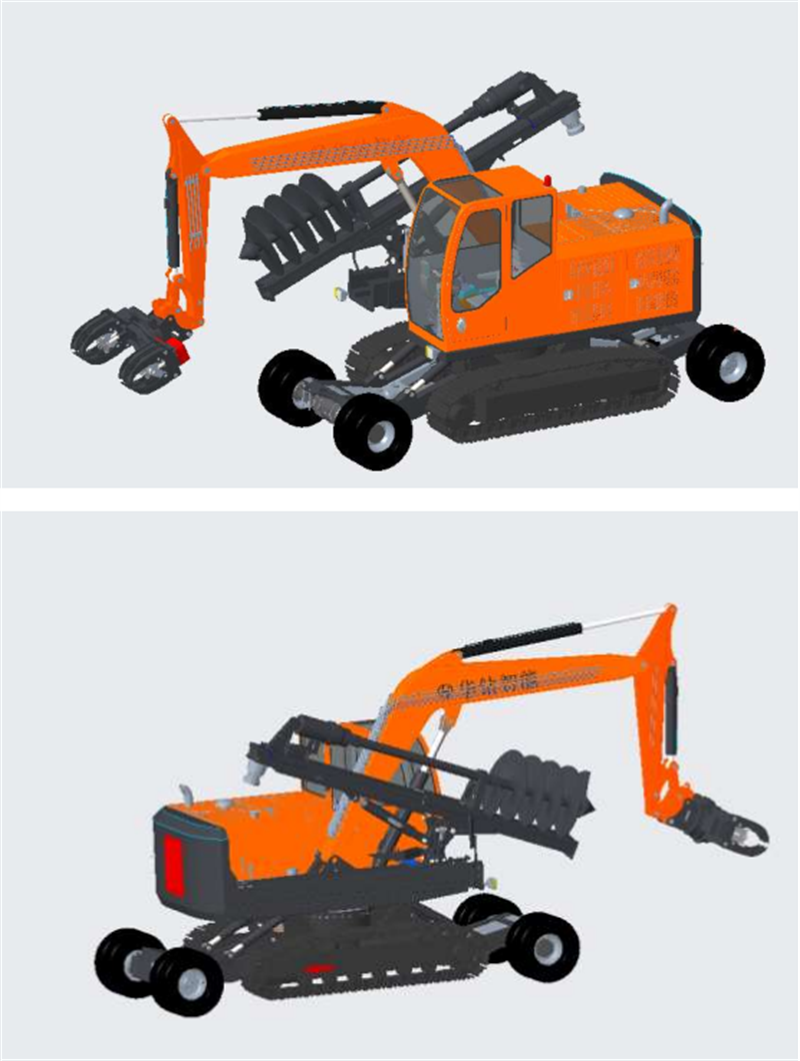

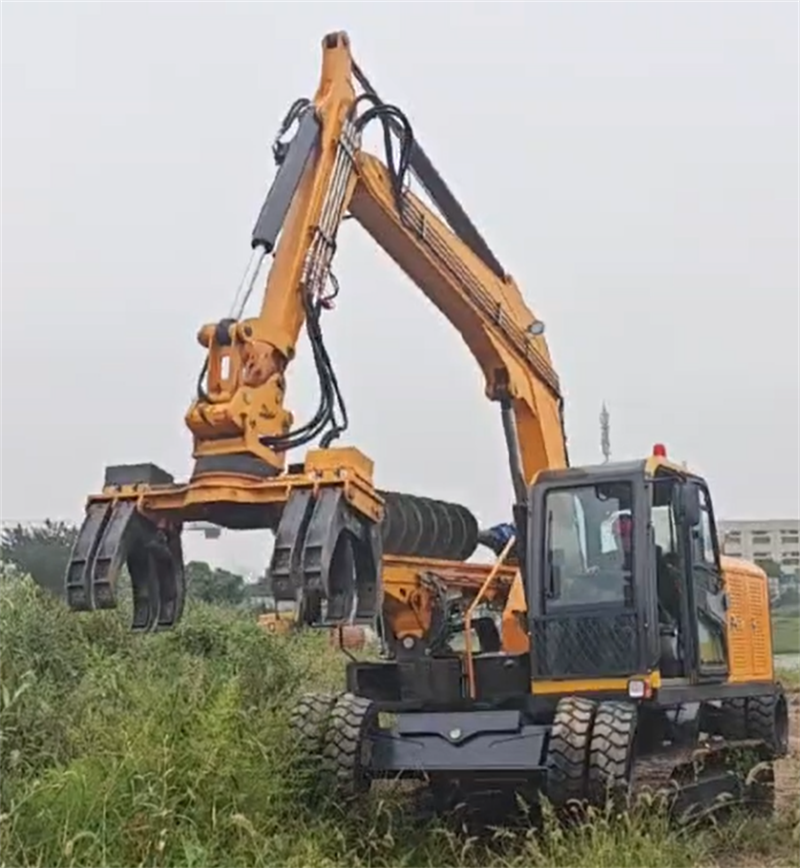

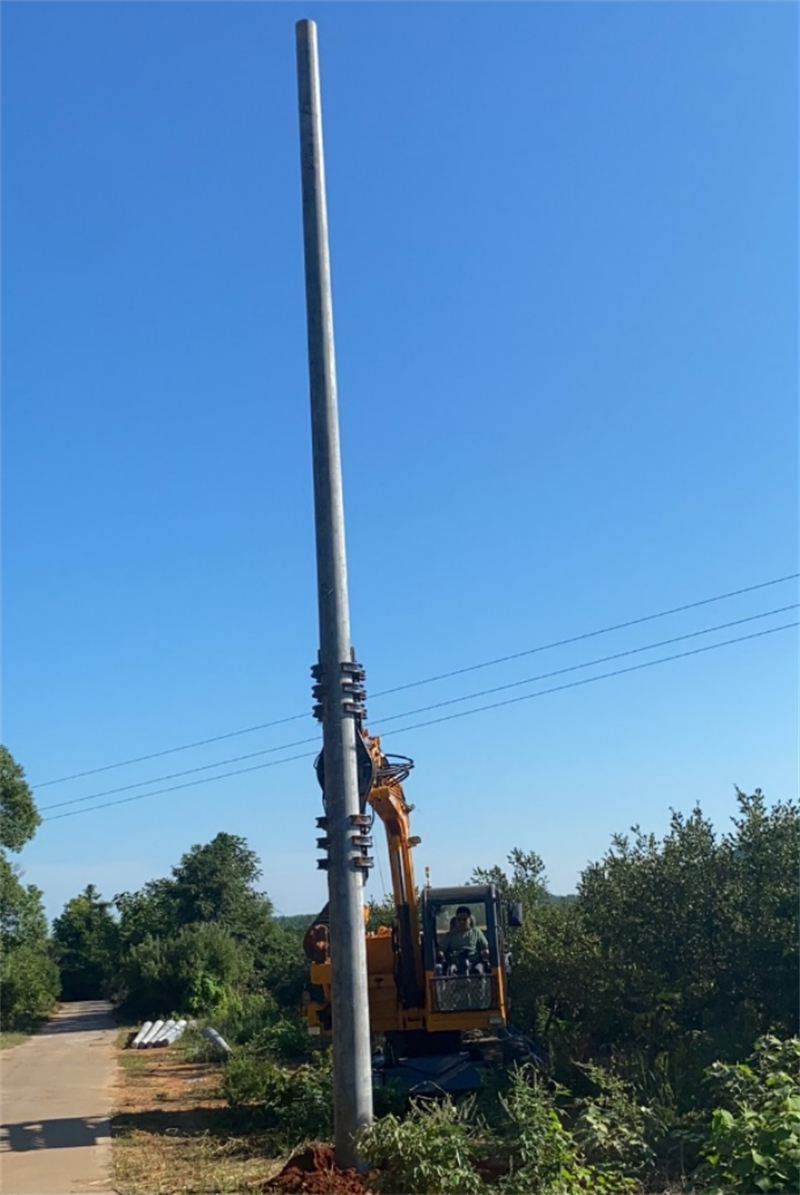

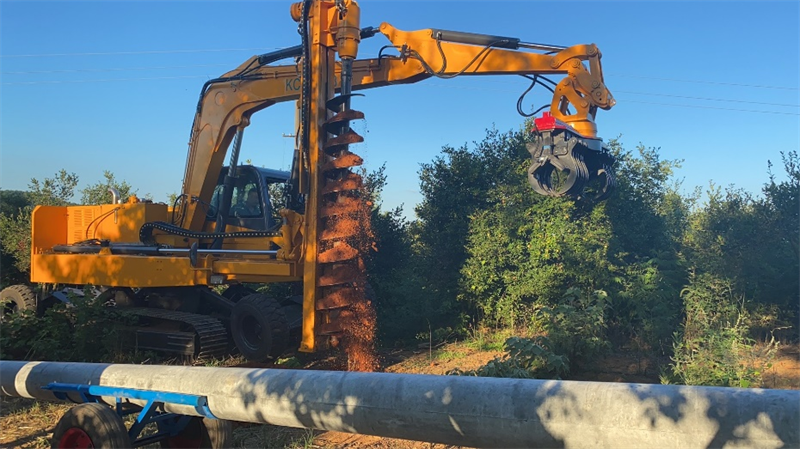

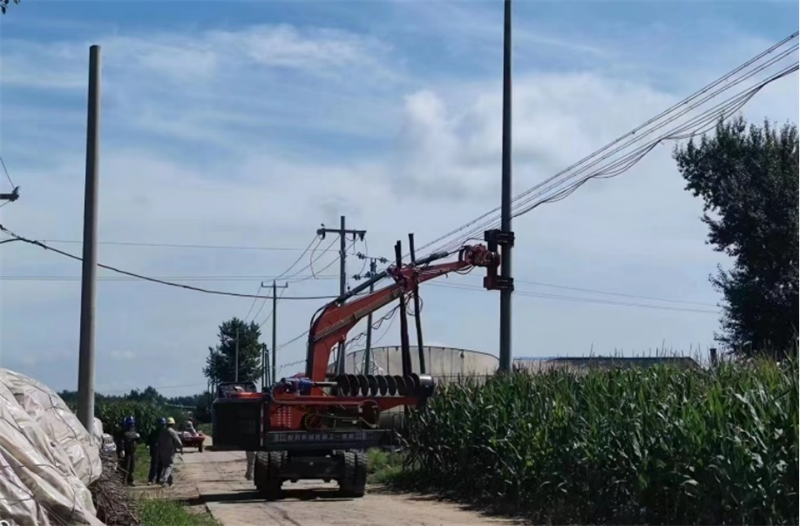

According to the particularity of power grid operation, the working conditions of driving road surface is complex, such as common roads, mountain roads, mud flats, sand and gravel lands, and various hillsides, fields and gullies. A type of chassis for all-terrain driving is needed. The tires and tracks of this product are integrated, which can adapt to the complex working conditions. The excavation mechanism is achieved by the system of swing boom, bucket rod, boom hydraulic cylinder, bucket rod hydraulic cylinder and bucket hydraulic cylinder, works like a mini-excavator. Drilling hole adopts the boom system of rotary drilling rig and the small power head. In order to increase operating radius, boom telescope mode is used; Erection of pole is achieved by excavation boom, by switching the special gripper through quick change joint. The gripper grabs the center of gravity of the pole, then rotates, erects, and implants it into the hole, then compacts the foundation, so as to implement the drilling and erection operations.
序号 S/N | 作业部件 Operation components | 技术项目 Item | 性能参数 Performance parameters | |
1. | 整车 Whole vehicle | 外形尺寸（长X宽x高mm） Outline dimensions (L x W x H mm) | 7896x2250x2885 | |
2. | 整车质量（Kg） Total weight (kg) | 14200 | ||
3. | 接近角（°） Approach angle (º) | 20 | ||
4. | 离去角（°） Departure angle (º) | 18 | ||
5. | 离地高度（mm） Ground clearance (mm) | 350 | ||
6. | 底盘 Chassis | 发动机 Engine | 功率Kw@rev Power Kw@rev | 81kW/2200r/min |
7. | 扭矩Nm@rev Torque Nm@rev | 480N.M/1600RPM | ||
8. | 行走速度 Traveling speed | 轮式行走（Km/h） Wheel-type travelling (Km/h) | 15 | |
9. | 履带行走（Km/h） Crawler travelling (Km/h) | 3.5 | ||
10. | 爬坡度 Gradeability | 轮式 Wheeled | 30% | |
11. | 履带行走 Crawler travelling | 60% | ||
12. | 履带过坎高度（mm） Maximum height of the track striding over the ridge (mm) | ≤800 | ||
13. | 挖掘 Excavate | 最大挖掘距离（mm） Maximum excavating distance (mm) | 7050 | |
14. | 最大挖掘深度（mm） Maximum excavating depth (mm) | 3000 | ||
15. | 挖斗宽度（mm） Bucket width (mm) | 450 | ||
16. | 钻孔 Drilling hole | 最大钻孔深度（mm） Maximum drilling depth (mm) | 3000 | |
17. | 最大钻孔距离（离回转中心mm） Maximum drilling distance (from the rotation center mm) | 3500 | ||
18. | 钻头外径（mm） Drill external diameter (mm) | 500 | ||
19. | 成孔速度（一般软土层，深度3m） Drilling speed (common soft soil, depth 3m) | 2min | ||
20. | 抓取 Grab | 抓取高度（抓具中心离地面中心mm） Grab height (gripper center above the ground center mm) | 3800-5200 | |
21. | 抓取距离（离回转中心mm） Grab distance (from the rotation center mm) | 5500 | ||
22. | 立杆 Erect pole | 适合电杆类型 Suitable pole type | 15m（2.3t）及以下 15m (2.3t) and below | |
23. | 立杆抓高（抓具中心离地面中心mm） Pole-erecting grasping height (gripper center above the ground center mm) | 3800-5200 | ||
24. | 立杆距离（离回转中心mm） Pole-erecting distance (from the rotation center mm) | 4500-5200 | ||
