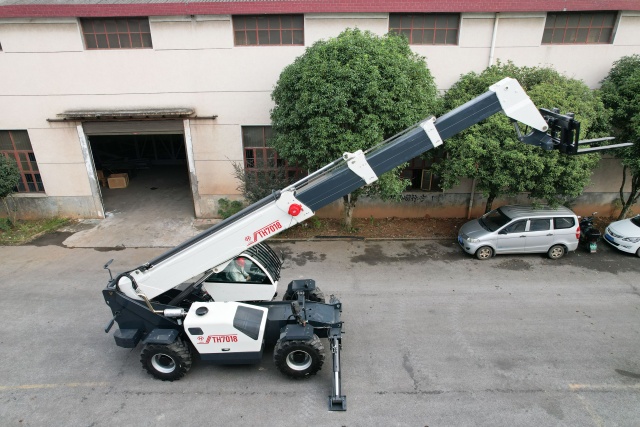

7 Ton 18 M Telehandler

7 tons 18 m telehandler;
*With load limiter on the front driver table Spanish;
*With Cummins National III QSB4.5-C160-30 engine119KW/2200rev;
*With Self-leveling 1200 mm quick change forks;
*Cab with air-conditioned and heating, fan;
*The adjusting swings manual rear & front axle;
*Closed full electric hydrostatic system;
*extra hydraulic Pipe / valve for attachment;
*With Off-road tires 14.00-24-28PR.
*adjustable seat;
*protect cover for cab glass;
*with hydraulic wet axle,4-wheel steering, crab movement, front wheels steering;
*fir ext 1 kg inside cab and 5 kg fire ext out of cab;
*Reverse beep;
*Spanish operation book, service book,parts book;
*customer LOGO on the car and screen;
*emergency stop switch inside cab and out side cab;
*Key 3 sets;
*360°CCTV and CCTV on the boom head;
*model by customer HZTH7018 ;
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • HZTH7018

  • Hua Drill

性能项目名称
Name of performance project

HZTH7018

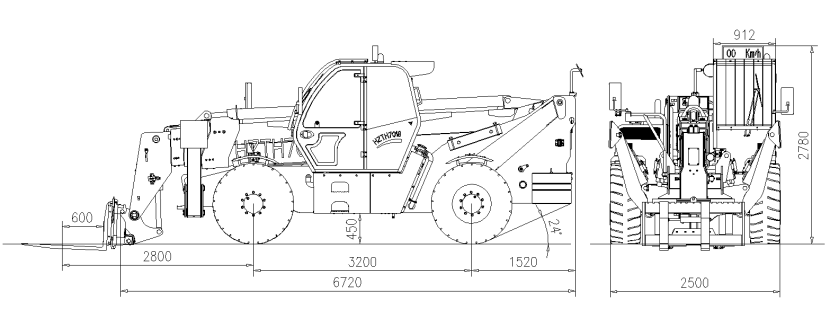

外形尺寸
Outline dimension

长(mm)Length (mm)

6720

宽(mm)Width (mm)

2500

高(mm)Height (mm)

2710

自重(kg)Dead weight (kg)

17000

液压系统压力(Mpa)Hydraulic system pressure (MPa)

28

液压系统流量(l/min)
Hydraulic system flow (l/min)

145

发动机Engine

型号Model

QSB4.5-C160-30

功率(kw@rev)Power (kw@rev)

119/2200

扭矩(N@rev)Torque (N@rev)

480/2200

最大行走速度(km/h)Maximum mobile speed (km/h)

25

爬坡度(°)Gradeability (º)

30%

离去角(°)Departure angle (º)

28

后桥车架摆动角度(°)Swing angle of rear axle frame (º)

8

轮胎规格Tire specification

14.00-24-28PR

液压油箱Hydraulic oil tank

220 L

柴油油箱Diesel oil tank

215 L

液压泵Hydraulic pump type

Gear Pump for power steering and movements

臂举升速度Boom lifting Speed

15.1 s

臂前伸速度Boom Extension Speed

10.4 s
