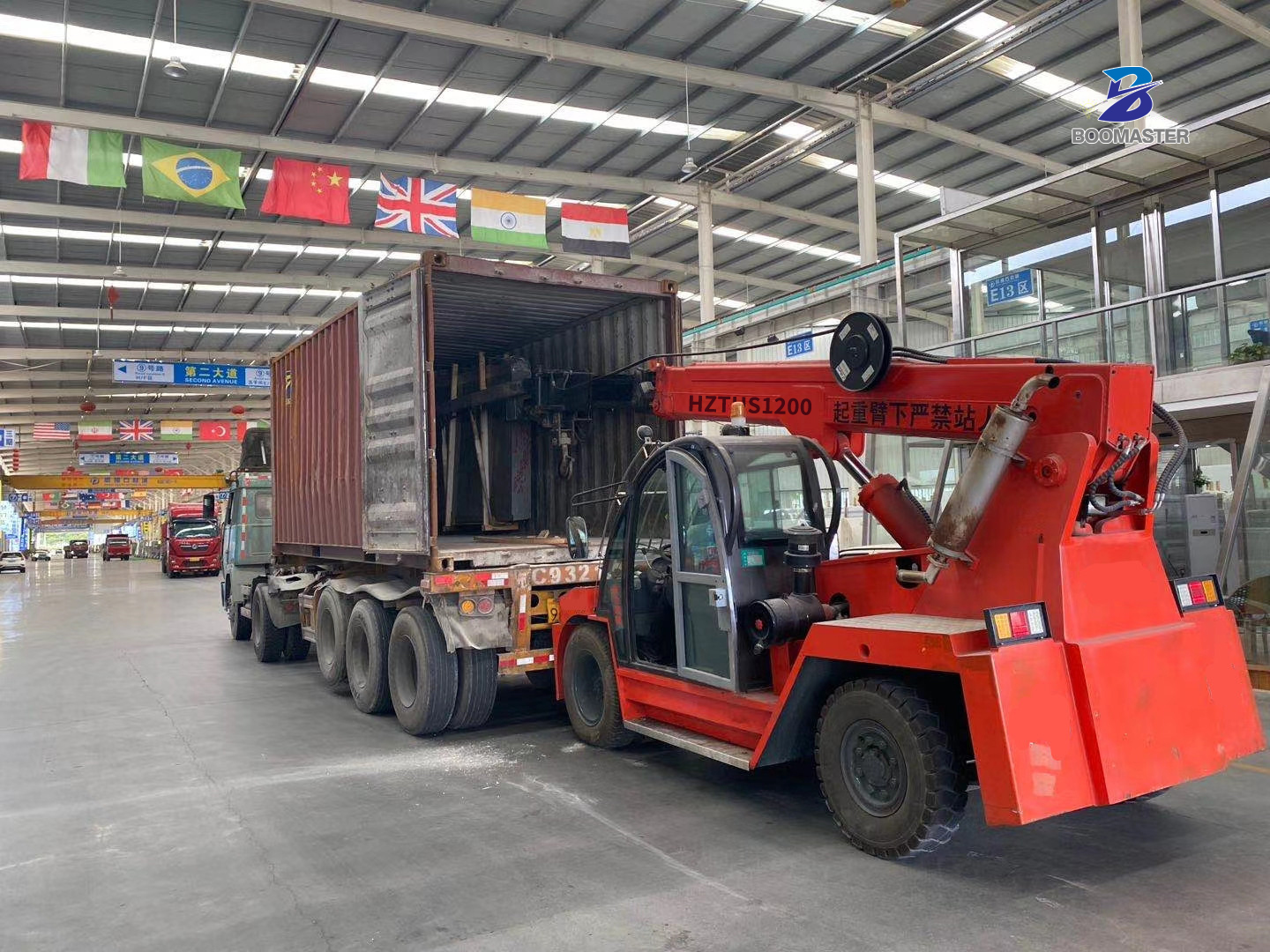

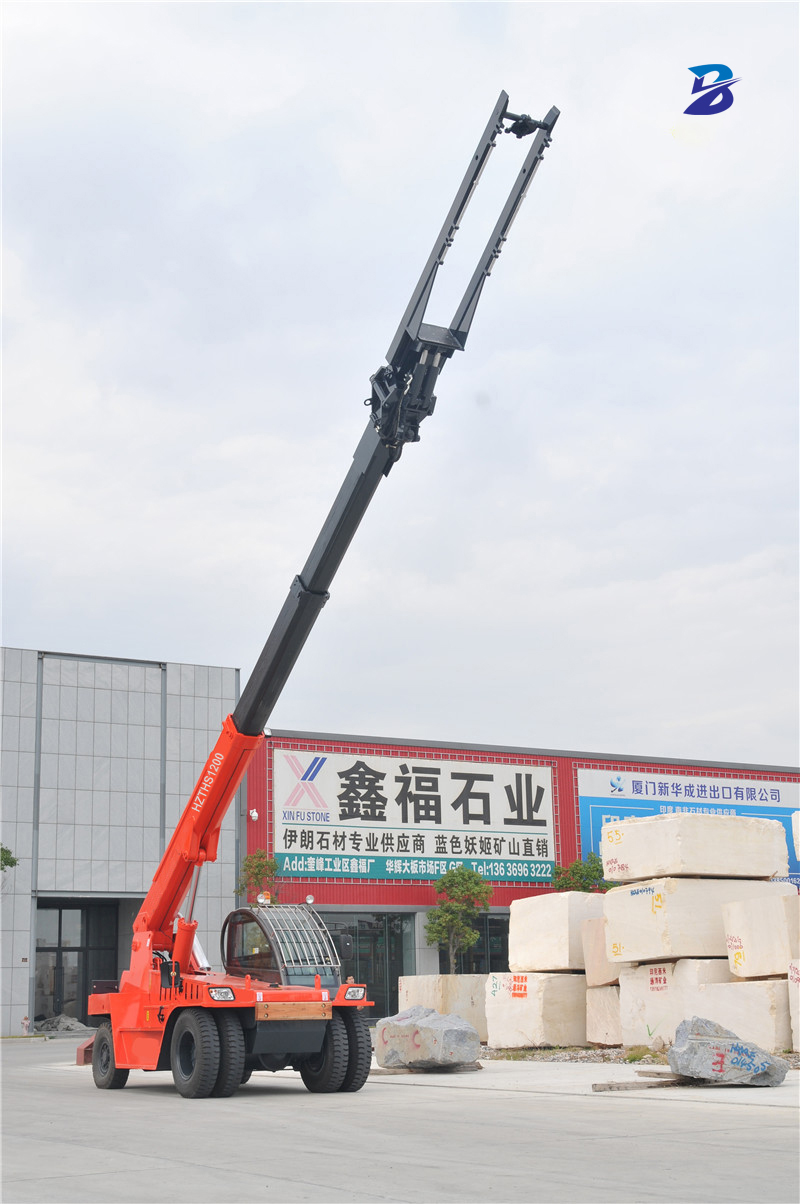

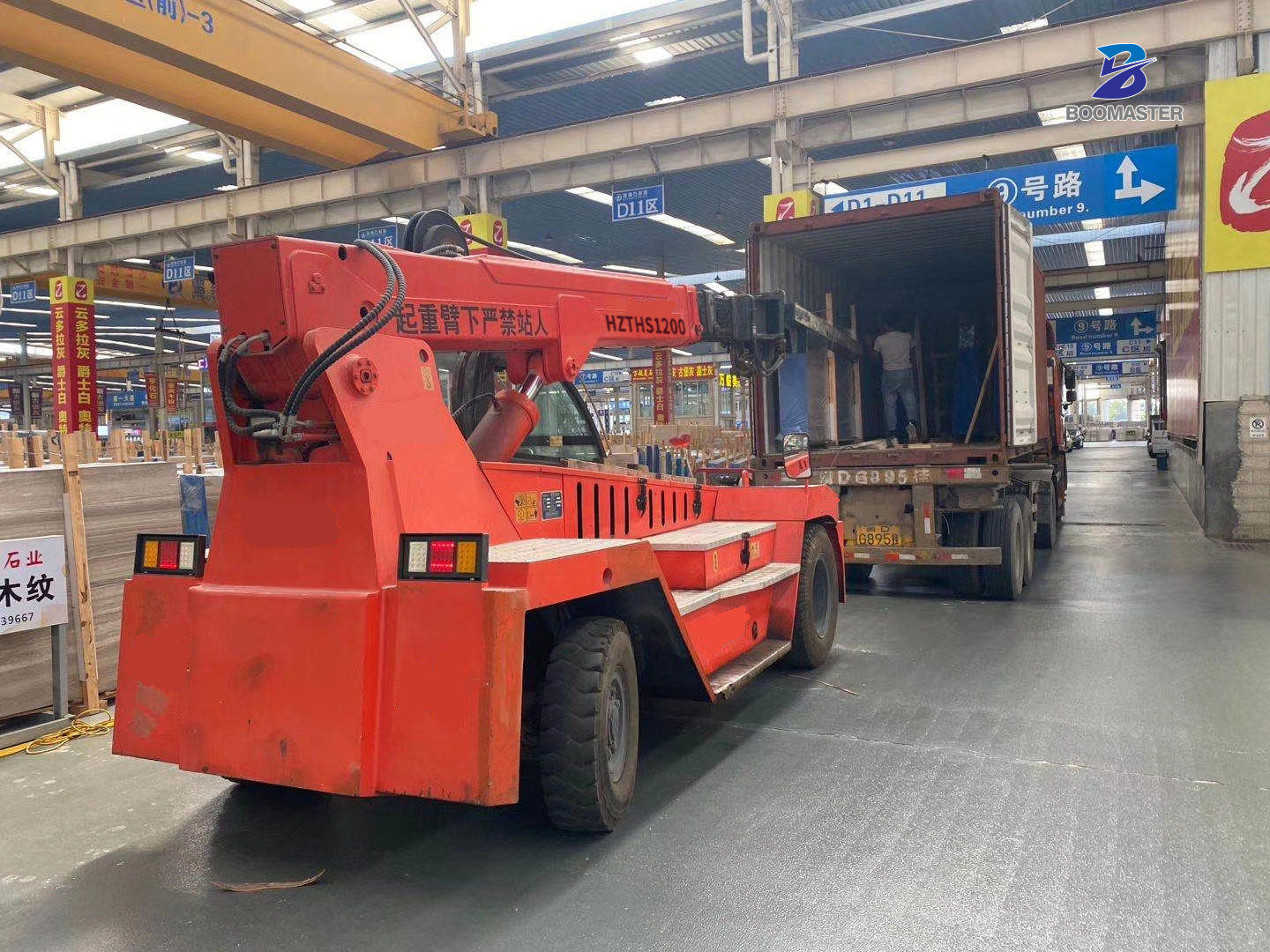

12 Ton Marble Slab Handler & Stone Slab Handler - HZTHS1200 , telehandler for lifting stone,10 ton telehander for lifting stone,

Machine weight

kg

13800

Maximum operating height of the main hook at the maximum extension distance

mm

7700

Lifting height of the maximum external extension of the accessory hook

mm

10500

Maximum extension of the main hook

mm

4800

Maximum lateral extension accessory hook（horizontal）

mm

8000

Lifting height of the maximum exteral extension of the accessory hook

kg

2300

Lifting speed starting arm  a=-6° to 40°

s

13

Lifting speed rain arm   a=40° to -6°

s

10.5

Expansion speed Stretch out whole course

s

14.3

Expansion speed Full-scale back-up

s

18.3

Driving speed  Forward gear I

km/h

10

Driving speed  Forward gear II

km/h

30

Driving speed  Reverse gear I

km/h

10

Driving speed  Reverse gear II

km/h

25

Maximum grade ability(empty load)

°

≤18

Minimum turing radius(out center)

mm

4250

Wheel base

mm

3000

Wheel Tread

mm

Front 1600 / Rear 1650

Cummins

National 3

4BTA3.9-C125 93KW

National 2

QSB3.9-C125-30 119KW

Tyre Vapour pressure(front/rear)

0.76/0.76

Tyre Quantity(front/rear)

4/2

Cab with Fan

Cab with AC

Stone clip Attachment

Quick change Fork

Pneumatic Tire

Solid tire

Joystic Control

Cummins Emission II engine

Cummins Emission III engine, EPA or Stage 5 engine

Working and Caution light

Load limiter
